BUFFER1 entrada y 1 salidaSerie 74xx
logic gatesEn stock

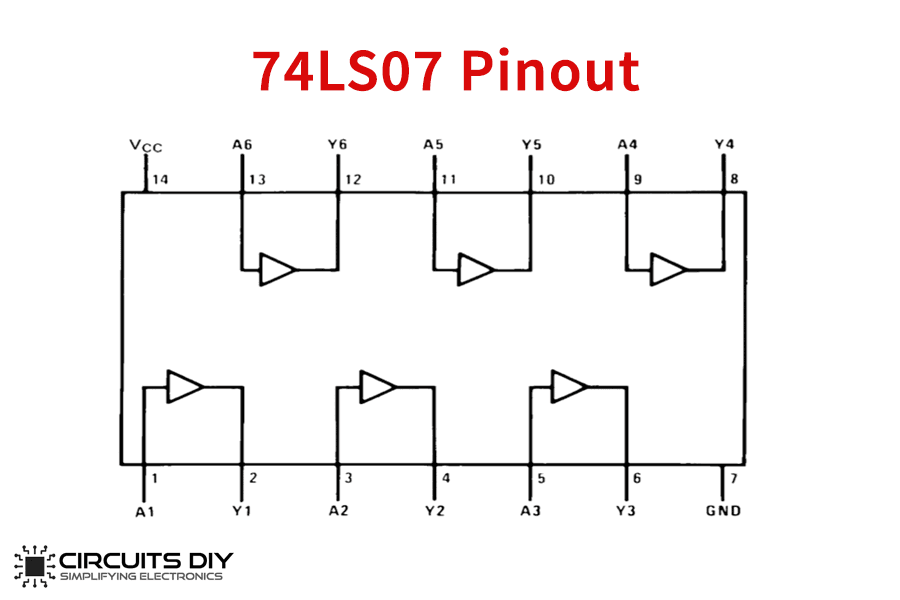

7407 Buffer IC Pin Diagram Datasheet
7407/74LS07
Texas Instruments · Serie 74xx
Salida = A (amplificado)
Productos relacionados
Ver todos
Descripción
The 7407 IC datasheet shows a hex buffer/driver with open-collector outputs. This 7407 datasheet includes pin diagram, specifications, and complete IC details. The 7407 integrated circuit buffer amplifies current without changing signal logic. Check the 7407 IC pin diagram and datasheet for driving heavy loads and interface applications.
Tabla de Verdad
| salida | Entrada A |
|---|---|
| 0 | 0 |
| 1 | 1 |
